Designed for koi ponds over 8,000 gallons, the Hurricane Settling Chamber provides excellent mechanical filtration in an easy-to-clean unit. This Vortex filter can easily be added to any established pond with little work. The 4" output allows for no restriction or backflow in the filter. This Settling Chamber works best as a Gravity Fed System, however, can also be a Combination System. As a bonus, the Hurricane Settling Chamber can be customized to fit your needs with additional 3" or 4" inputs. Unlike plastic cones, the Hurricane series of filters are constructed of heavy-duty fiberglass and will not warp or distort. Every system is made in the USA and features our exclusive Lifetime Filter Body Guarantee.
Inlet | Output | Drain | Max Flow | Dimensions (Dia. x Height) | Weight | MSRP |

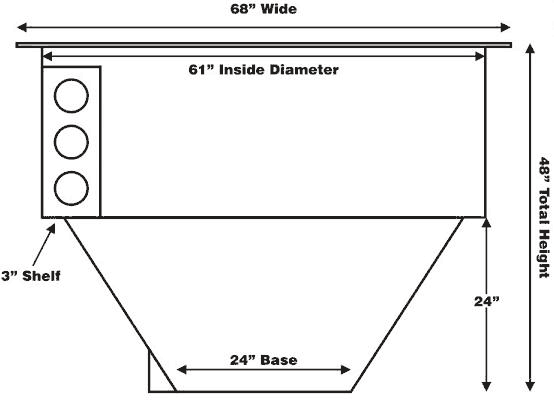

4" | 4" | 4" | 7,000 GPH | 68" Dia. x 48" H | 320 lbs. | $1,799.95 |
Features: |
• Rigid fiberglass construction |
• Vortex settling chamber removes large debris |
• Optional second input for dual bottom drain applications |
• 4” drain with easy open drain valve included |
• Bulkheads and PVC adapters included |
• Unit is free standing or can be burried. |
Recommended Pumps/Accessories: | |
Submersible Pumps | Not Recommended |
External Pumps | • Sequence 1000 Pump, 5800SEQ22 |
